F-150 Pro-Access tailgate installation

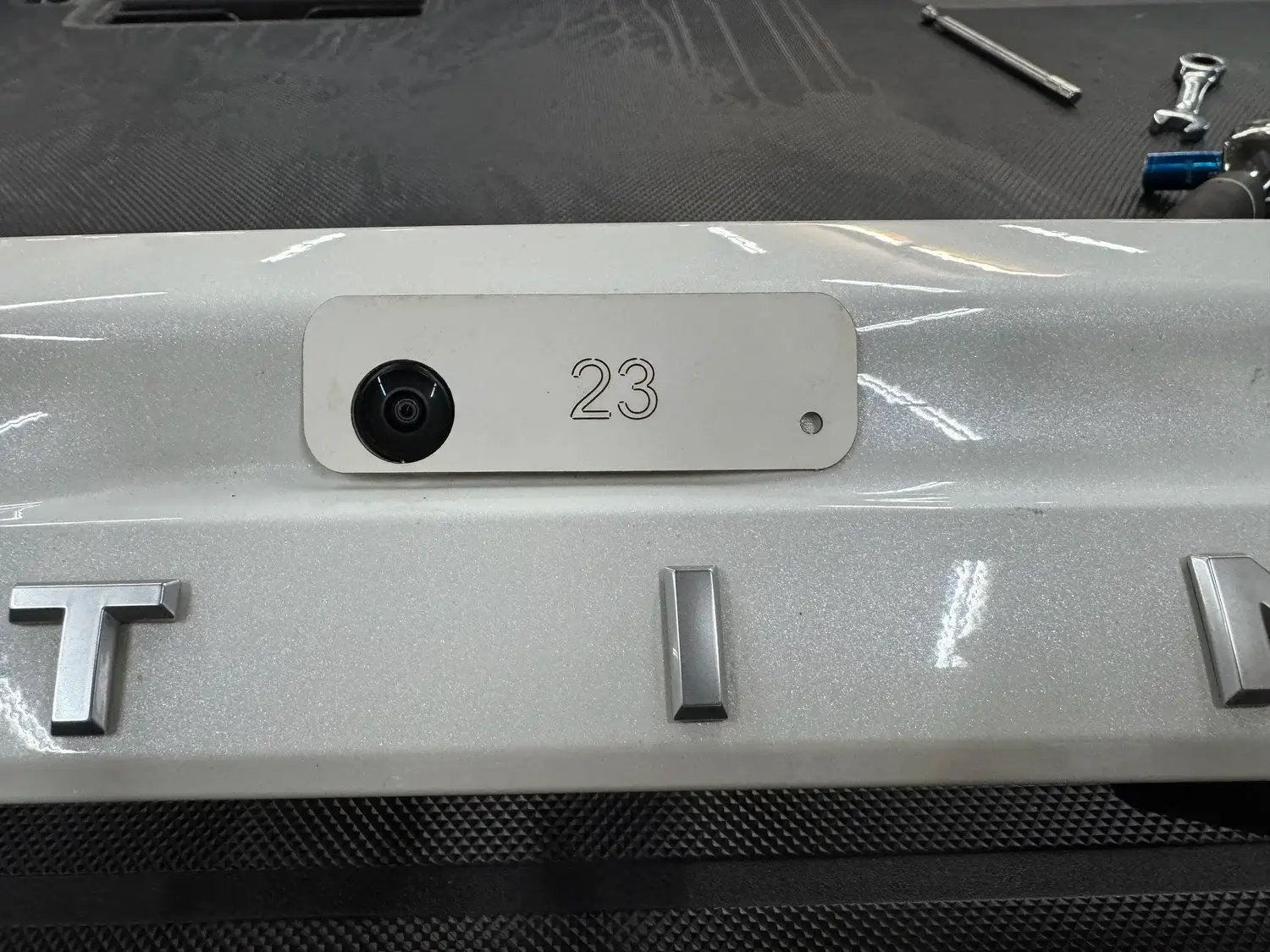

Template #23 Location

Verify your camera housing matches what is shown in the picture*
Drill template reference
See where your template goes and compare it with other vehicles that use the same template.
What You Will Need:
- Template #23 (Found in your ClearVU Kit)
- Small O-Ring spacer (found in kit)
- Side Cutters
- Step Drill (Or 5/16” Drill)
- T30 Torx Bit
- 10mm Socket
- plastic pry tool
- fish tape (or zip tie hose to frame rail)
- Center Punch or Marker
*If any parts are lost, defective, or broken during install, please contact to have a replacement shipped to you at no cost. Contact: customer service at (716)-492-1653 or customerservice@clearvucam.com
